Garmin EchoMAP UHD 73cv Panoptix Ice Bundle

Description

Garmin EchoMAP UHD 73cv Panoptix Ice Bundle

Designed for the passionate angler, the Garmin EchoMAP UHD 73cv Panoptix Ice Bundle is made for ice or also open water and can be easily transported between seasons.

Drill fewer holes and catch more fish when you use Panoptix technology, now included with the Panoptix PS22 ice fishing bundle. The sun won’t steal your screen. The bright 7” display is sunlight readable. Get triple the views with three types of sonar by using the included transducer. Only drill where there’s fish when you use LiveVü Forward sonar. Keep an eye on your jig and what it attracts with LiveVü Down sonar. It’s all in the details. And with LakeVü g3 maps, you’ll get them all on 18,000+ lakes. Everything goes where you go. All accessories fit in the rugged, portable carrying case.

Key Features:

• ECHOMAP UHD: Use the 7” ECHOMAP UHD 73cv touchscreen combo with keyed assist for three types of sonar, and go from ice to open water.
• PANOPTIX TRANSDUCER: See what’s below the surface with the included Panoptix PS22-TR transducer. Use the swivel pole mount to change your angle.
• LIVEVÜ FORWARD: LiveVü Forward sonar shows up to 100’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
• LIVEVÜ DOWN: LiveVü Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.
• GARMIN CHIRP SONAR: Garmin CHIRP traditional sonar provides crystal-clear images with remarkable target separation and jig detection.
• LAKEVÜ G3 MAPS: The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.

Includes:

• ECHOMAP™ UHD 73cv chartplotter
• Panoptix™ PS22-TR transducer
• Panoptix ice fishing mount
• GT10HN-IF transducer
• Tilt/swivel mount
• Power cable
• and also Documentation

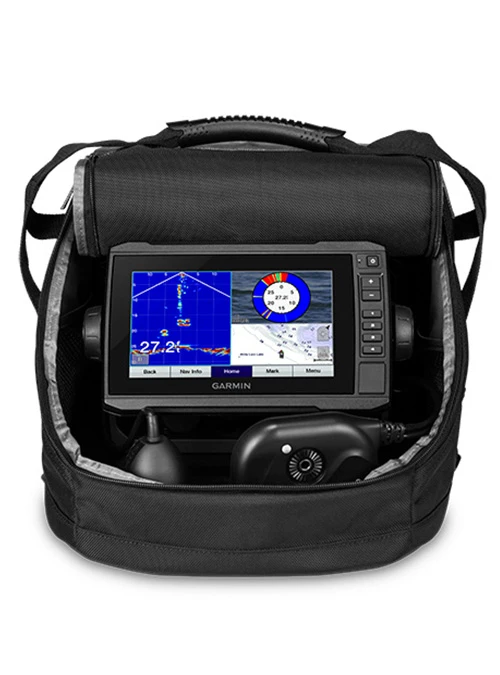

• Portable fishing kit
  • Bag with handle
  • Foam float
  • Transducer adapter cable
  • Cable grommet
  • Rechargeable battery as well as a Battery charger
  • and also a preloaded LakeVu g3 maps

Specifications:

PHYSICAL DIMENSIONS	12.3″ × 14.5″ × 10.0″ (31.1 × 36.7 × 25.4 cm)
DISPLAY SIZE	6.0″x3.6″; 7.0″ diagonal (15.2 x 9.1 cm; 17.8 cm diagonal)
DISPLAY RESOLUTION	800 x 480 pixels
DISPLAY TYPE	WVGA display
WEIGHT	16.7 lbs (7.6 kg)
WATER RATING	IPX7
POWER CONSUMPTION	6.2 W
ANTENNA	Internal or external over NMEA 2000
TRANSMIT POWER	GT10HN-IF Transducer: 500 W (RMS) / 4,000 W (peak to peak)
RECEIVER	5 Hz
GARMIN MARINE NETWORK™ PORTS	1 Panoptix™ port
