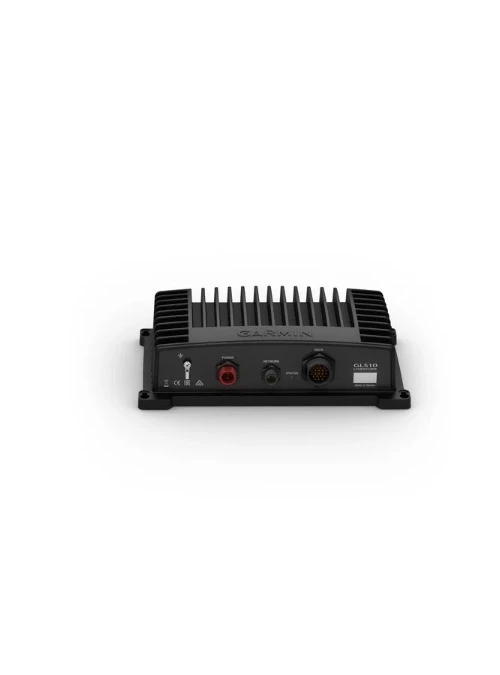

Garmin GLS-10 Sonar Module
Original price was: $370.00.$98.99Current price is: $98.99.
- Efficiency meets excellence in customer care.
- Free 1 year warranty period
- Multiple payment methods, 100% payment security
- High quality products, low prices.
Description
Garmin GLS-10 Sonar Module
The easy-to-install, networkable Garmin GLS-10 Sonar Module allows you to see live, real-time scanning sonar. Add the LVS32 transducer model to see easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat. And you can share sonar images seamlessly across multiple networked chartplotters.
Panoptix LiveScope Down
LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boat — up to 200’ — even while your boat is stationary.
Panoptix LiveScope Forward
LiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.
General:
| PHYSICAL DIMENSIONS | 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm) |
|---|---|
| WEIGHT | 4.3 lbs (2.0 kg) |
| WATER RATING | IPX7 |
| TRANSMIT POWER | 500 W |
| GARMIN MARINE NETWORK™ PORTS | 1 (small connector) |
| TEMPERATURE RANGE | Operating: -15 C to 70 C |
Sonar Features & Specifications:
| FREQUENCIES SUPPORTED | 530 – 1,100 kHz |
|---|---|
| MAXIMUM DEPTH | Down and Forward: 200’ (61.0 m) |
Electrical:
| POWER INPUT | 10-32 V |
|---|---|
| POWER USAGE | 21 W typical, 58 W max |
| FUSE | 7.5 A |
In the Box:
- GLS 10 sonar module
- Power cable
- 2 meter Garmin marine network cable, small connector
- Network adapter cable
- Mounting hardware
- Documentation
