Marcum LX-7L Sonar

Description

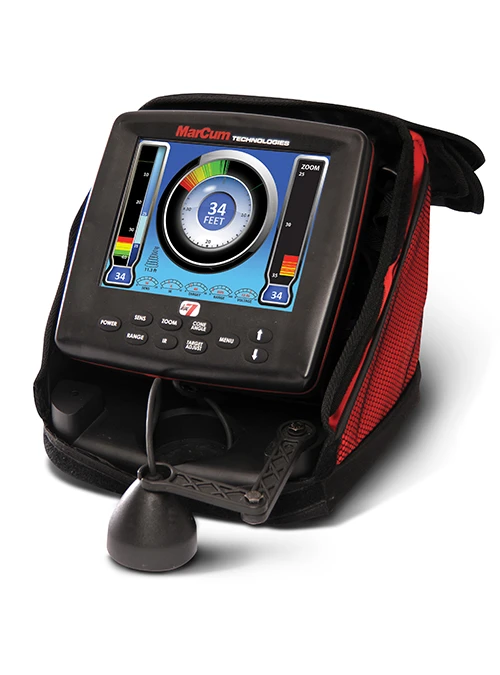

Marcum LX-7L Sonar Systems

From the ice age to the digital age, MarCum’s vanguard LX-7L Lithium LiFePO4 has forever transformed the game of hunting fish on frozen water. Furthermore, over a decade of cutting-edge sonar design in the making. The radically innovative LX-7L Lithium LiFePO4 has been built with the optimum blend of sonar DNA from MarCum LX Flasher and also Digital Fish Finding technologies. So, a true breakthrough in “big picture” ice sonar, LX-7 presents anglers with an incredible interactive ice fishing experience in a panoramic 8-inch LCD environment.

Features:

MODEL NO.	LX-7L	LX-7LI
DISPLAY	8″ Flat Panel Color LCD 4 Color Palette Options	8″ Flat Panel Color LCD 4 Color Palette Options
POWER	4800 Watts Peak to Peak Output Power	4800 Watts Peak to Peak Output Power
CONE ANGLE	Dual Beam 8/20 Degree Ice Transducer	Dual Beam 8/20 Degree Ice Transducer
TARGET SEPARATION	Down to 1/2-Inch	Down to 1/2-Inch
INTERFERENCE REJECTION	Patented 12 Step Interference Rejection	Patented 12 Step Interference Rejection
ZOOM	Automatic Bottom Lock Selectable Zoom Windows – 5′, 10′, 20′, 40′ Patented Infinitely Adjustable Zoom (Zoom anywhere throughout the water column)	Automatic Bottom Lock Selectable Zoom Windows – 5′, 10′, 20′, 40′ Patented Infinitely Adjustable Zoom (Zoom anywhere throughout the water column)
RESOLUTION	800 x 600 Pixels	800 x 600 Pixels
CABLE	8 ft. Transducer Cable	8 ft. Transducer Cable
ON SCREEN DISPLAY	Any Combination of Vertical, Vertical Zoom, Flasher, Graph & Graph Zoom Split Screen	Any Combination of Vertical, Vertical Zoom, Flasher, Graph & Graph Zoom Split Screen
ADDITIONAL FEATURES	300′ Dynamic Depth Capability, Infinite Scale from 10′ and Deeper in 1′ Increments Upgradeable Firmware Exclusive Dynamic Depth/Range Exclusive Sonar Footprint Display Adjustable Scroll/Ping Rate Target Adjust Image Magnifier Adjustable Night-Vision Backlight	300′ Dynamic Depth Capability, Infinite Scale from 10′ and Deeper in 1′ Increments Upgradeable Firmware Exclusive Dynamic Depth/Range Exclusive Sonar Footprint Display Adjustable Scroll/Ping Rate Target Adjust Image Magnifier Adjustable Night-Vision Backlight

In the Box:

MODEL NO.	LX-7L	LX-7LI
BATTERY	Rechargeable 12-volt 10-amp Lithium LiFePo4 Battery	Lithium Shuttle with Built-in Rechargeable 12-Volt 12-amp
CHARGER	3-amp Hour Rapid-Charge Battery Charger	3-Stage Automatic Lithium Charger
STORAGE	Deluxe Padded Red Soft Pack	N/A
SCREEN PROTECTION	Snow Shield Faceplate	N/A
WARRANTY	Two Year System Warranty	Two Year System Warranty
